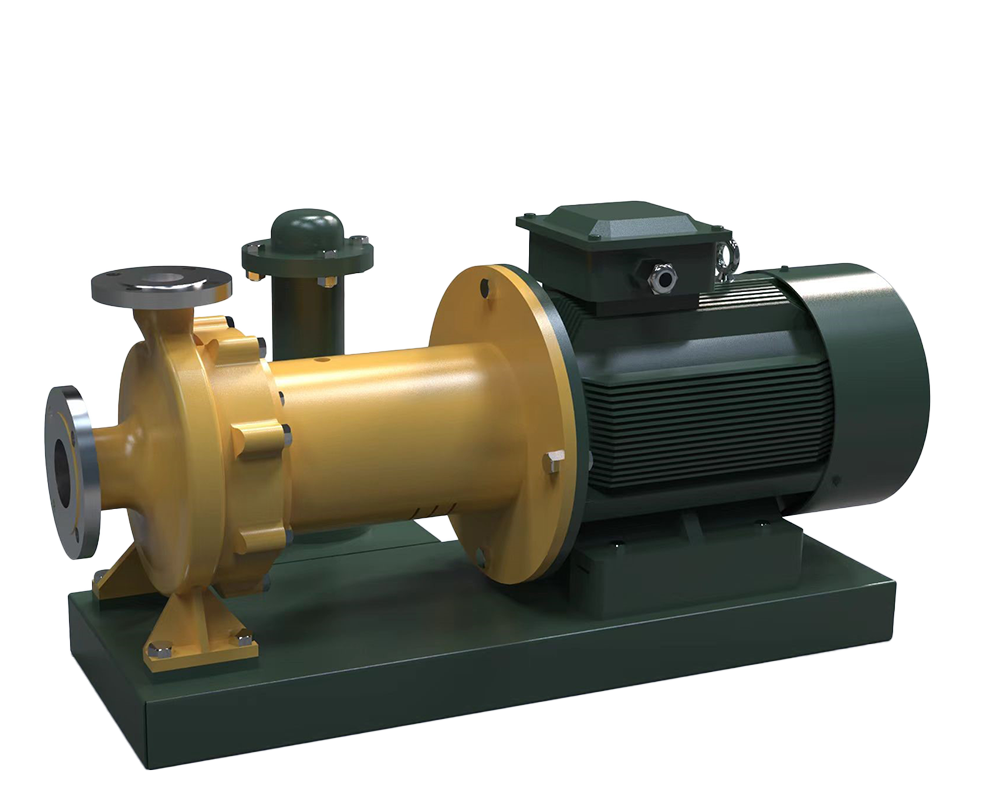

MDSP Magnetic Drive Chemical Pump
The MDSP magnetic drive chemical pump is a special chemical centrifugal pump designed for petroleum, chemical, steel and other industries where some media contain solid particles. It combines sealed magnetic drive technology with intelligent fluid control for reliable operation.
Product Overview
▅ How it works
The magnetic drive pump utilizes the magnetic coupling characteristics between the internal and external magnetic rotors of the magnetic coupling to achieve contactless torque transmission. When rotating, the motor drives the outer magnetic rotor to rotate. Under the magnetic coupling between the inner and outer magnetic rotors, the inner magnetic rotor and impeller are driven to rotate in a non-contact manner. At the same time, the isolation sleeve seals the inner magnetic rotor and the medium in the pump cavity to achieve complete sealing of the medium, thus achieving the special function of fully sealed zero leakage conveying materials.
▅ Product Advanced
1. The magnetic coupling adopts push-pull magnetic circuit design, optimal magnetic field synergy and eddy current thermal control, which greatly improves transmission efficiency.
2. Groundbreaking intelligent fluid separate control technology completely solves the century-old problem that traditional magnetic pumps are not suitable for transporting fluids containing particle impurities.
3. The cutting-edge dynamic pressure lubrication bearing system protects the long life cycle of the bearings.
4. Modular integration technology makes the pump assembly and disassembly very convenient, and the quality assurance is more reliable.
5. The axial positioning technology of the rotary component increases the efficiency of pump maintenance by more than 50% and reduces the difficulty by more than 60%.
6. High-end application environment, the company's advanced intelligent sensing system can be configured to adapt to user needs, with zero-delay equipment status prediction and equipment operation control.
7. According to the characteristics of the medium, the pump flow parts can be made of different materials such as austenitic stainless steel, titanium alloy, nickel-based alloy, fluorine-lined plastic, etc. to meet the requirements of corrosion resistance and wear resistance.
▅ Application fields
The products are widely used in petrochemical industry, coal chemical industry, fertilizer industry, iron and steel metallurgy, mining and other fields.
Especially suitable for transporting flammable, explosive, toxic and harmful, volatile, rare and valuable fluid media, as well as other media transport sites that require no leakage.
Performance Specifications
| Flow0.5-1000m3/h | |
| Height | 2-200m "sans-serif";"> |
| Rated speed | 2900 r/min 1450r/min |
| Maximum working pressure | 4.0MPa |
