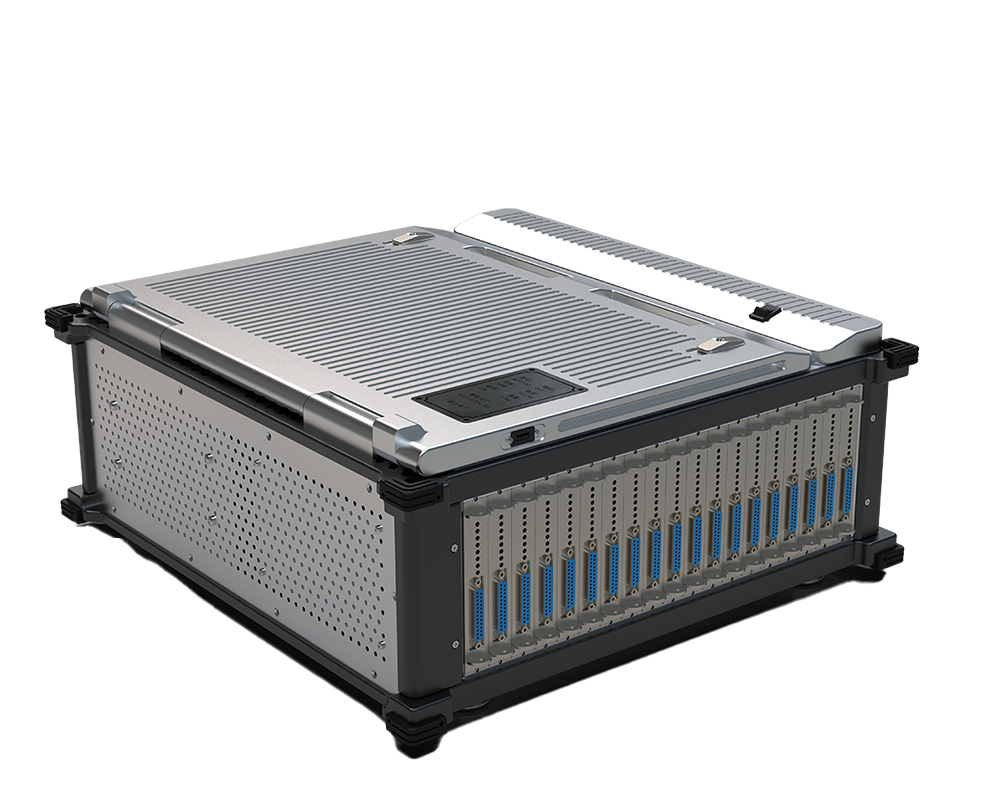

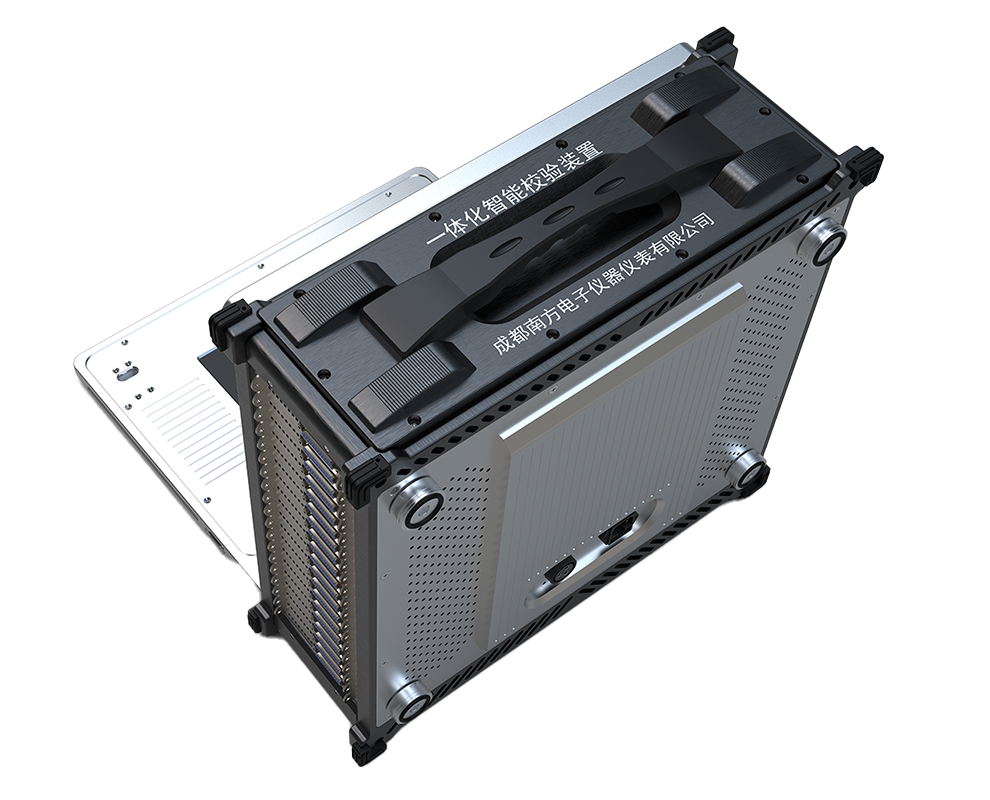

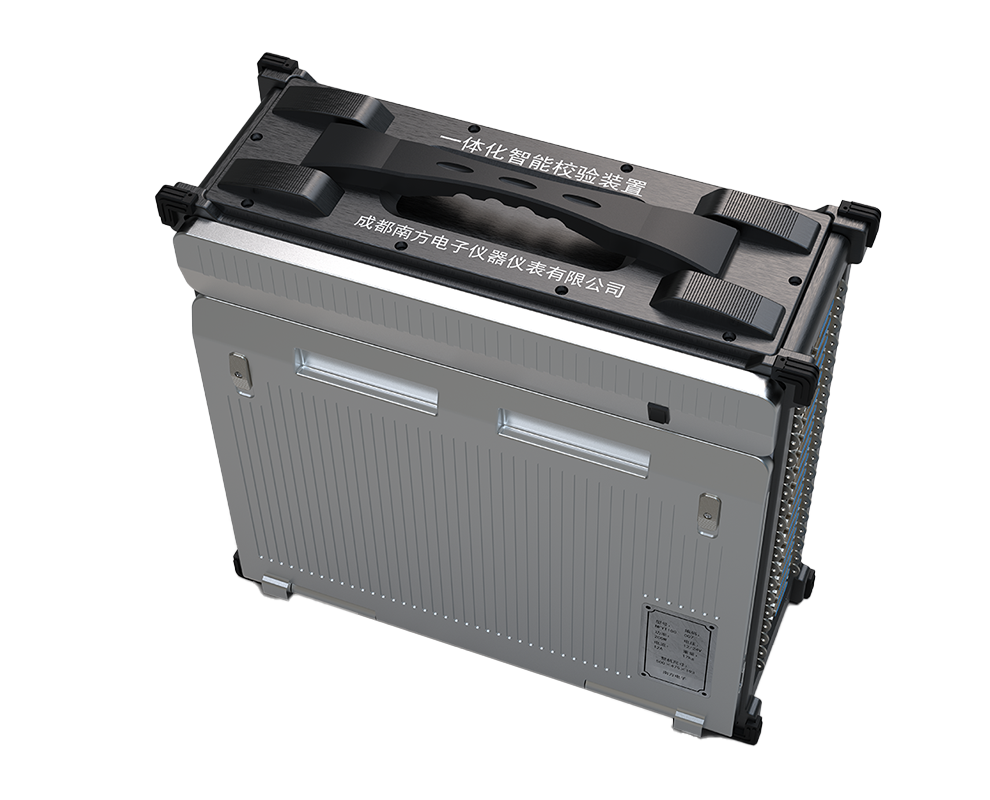

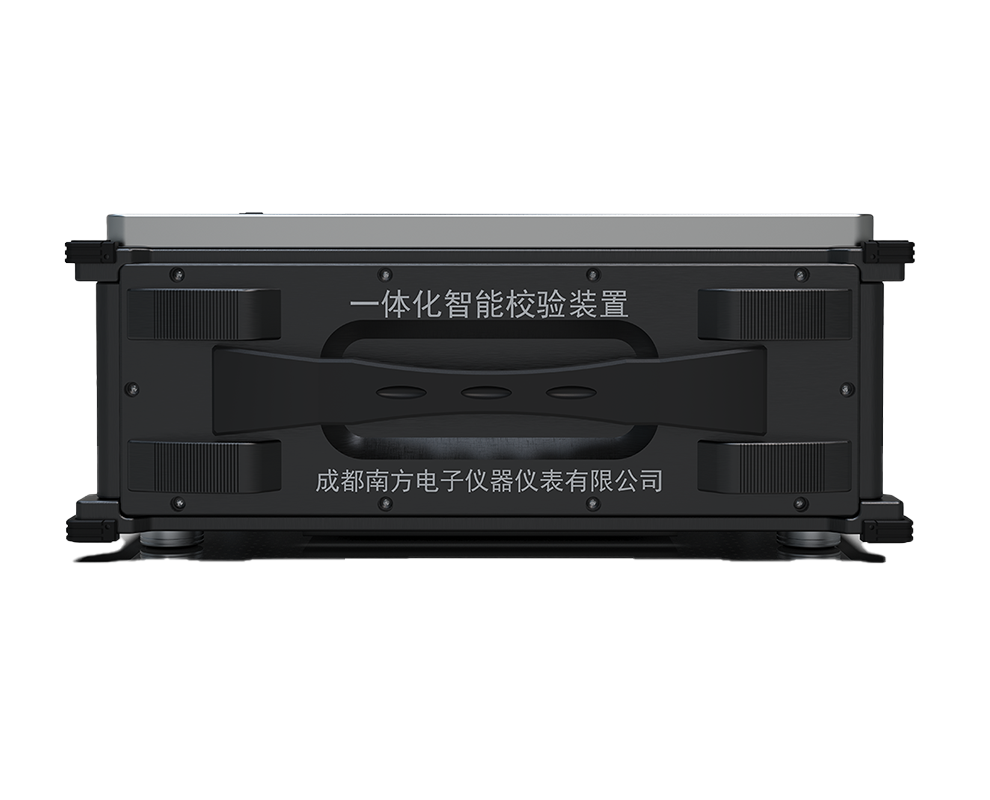

Integrated Smart Calibration Unit
The integrated smart calibration unit is an open and modular test platform using one host with configurable signal modules. It enables users to select required functions on demand, expand capabilities at any time, isolate signal channels, and support multiple communication interfaces.
Product Overview
▅ Product Features
1. Portability: The device is small in size, light in weight, easy to carry and move, and can be tested anytime and anywhere.
2. Multi-channel testing: With multiple test channels, multiple devices or multiple parameters can be tested at the same time to improve testing efficiency.
3. Intelligent: Built-in intelligent control system can automatically complete the test process, including data collection, processing and analysis.
4. High precision: Use high-precision sensors and measuring components to ensure the accuracy of test results.
5. Flexibility: Test parameters and test modes can be flexibly set as needed to adapt to different test scenarios and needs.
6. Data storage and transmission: It has data storage function, can store a large amount of test data, and supports data export and transmission.
7. Data analysis: Test data can be easily analyzed and processed, which facilitates subsequent data analysis and decision-making.
8. Easy to use and maintain: The test process makes the operation simple and easy to understand, and it has automatic diagnosis function for easy use and maintenance.
9. Customization: Can be customized according to customer needs.
▅ Applicable industries
helvetica, sans-serif; font-size: 18px; text-wrap-mode: wrap;">
Integrated intelligent verification devices are widely used in many industries, especially in the fields of intelligent manufacturing, energy, electric power, petrochemicals, medicine, automobiles, aerospace, environmental monitoring and other fields.
Electrical equipment testing: Through automated testing, the manual testing and recording process can be effectively replaced, shortening testing time, eliminating recording errors, saving corporate costs, and improving the efficiency of large-volume products and multi-channel testing.
Equipment maintenance and overhaul: In the process of maintenance and repair of industrial equipment, integrated intelligent calibration The testing device can quickly detect the electrical performance of the equipment and ensure the safe operation of the equipment.
Data collection and recording: It can be used to collect and record experimental data to facilitate data analysis and research.
Instrumentation and control system and equipment debugging: It can be used for data collection and equipment control to facilitate instrumentation and control system and equipment debugging.
Performance Specifications
| embedded processor | Industrial grade |
| Number of channels | Optional, supports up to 120 channels |
| Switch input (DC) | 24VDC |
| Switch input (AC) | 220VAC |
| Switching output (transistor) | 24VDC/0.5A |
| Switching output (relay) | 220VAC/16A |
| Pulse input | Support encoder input |
| Frequency output | 24VDC/1A PWM pulse width output |
| Analog input (voltage) | 0-10VDC, accuracy: ±0.25% |
| Analog input (current) | 4-20mA, accuracy: ±0.25% |
| Analog input (thermocouple) | J,K,L...U type, accuracy: ±0.25% |
| Analog input (resistance temperature detector) | Pt100, CU50, Ni100, accuracy: ±0.25% |
| Analog output (voltage) | 0-10VDC, accuracy: ±0.1% |
| Analog output (current) | 4-20mA, accuracy: ±0.1% |
| Vibration effects | Tested according to GB/T18271.3/IEC61298-3, <0.1% |
| Built-in control functions | PID control, cascade control, feedforward control, motor start and stop control, motor forward and reverse control, speed control, displacement control |
| Output function | Supports step, step, ramp, fixed-point output, etc. |
| Data processing | Support maximum value, minimum value, average value display |
| Other software features | It supports graphic display of historical data, supports measurement value locking, supports up to 10,000 groups of data storage and memory functions, supports customers' secondary development, provides a variety of interface functions, and supports logical condition responses between modules. Response speed: 100ms, response speed with external I/O port: 20µs. |
| Output power | DC24V/2A，DC5V/3A |

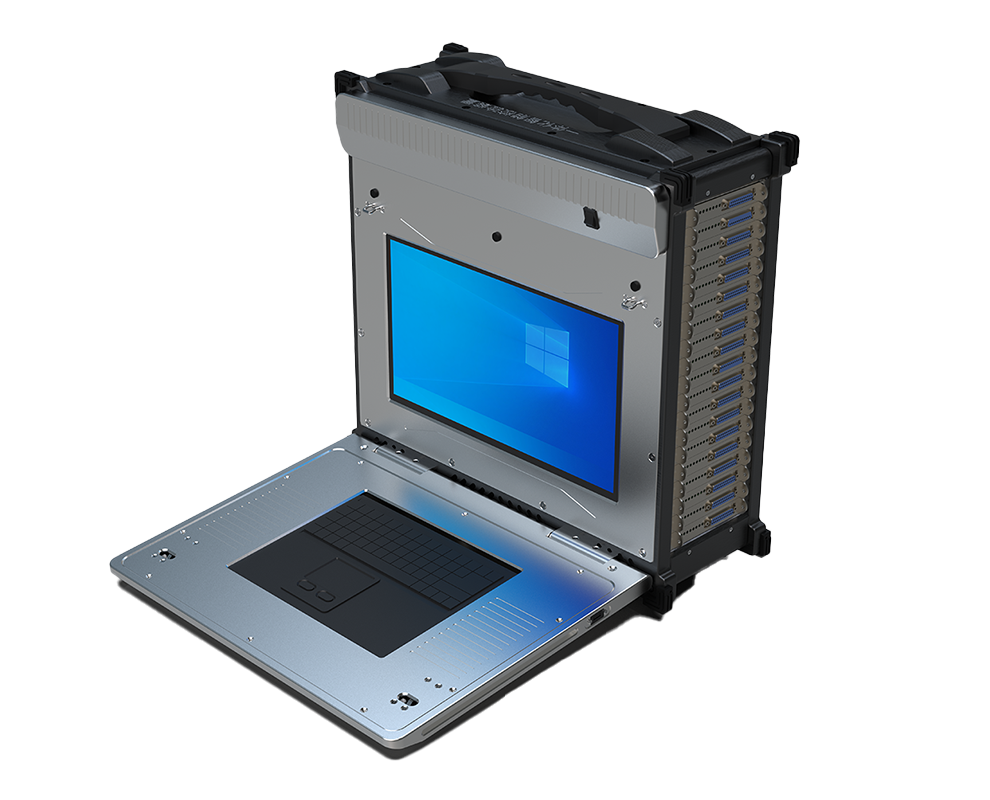

| show | 12-inch touch screen |
| Power supply voltage | 220 V.AC±10%，50HZ |
| Battery powered | This function is optional, 16.75AH (standard configuration) |
| Communication protocol | ModbuS-RTU,CAN,Industrial Ethernet |
| Communication interface | RS232,RS485,RJ45,USB |
| handheld terminal | Wired terminal, WiFi wireless terminal (optional) |
| Working temperature and humidity | -15℃~45℃，85%RH |
| Storage temperature and humidity | -25℃~85℃, 90%RH non-condensing |
| weight | ≤15kg |
| Appearance size | 600mm*500mm*300mm (reference value, subject to the actual object) |
