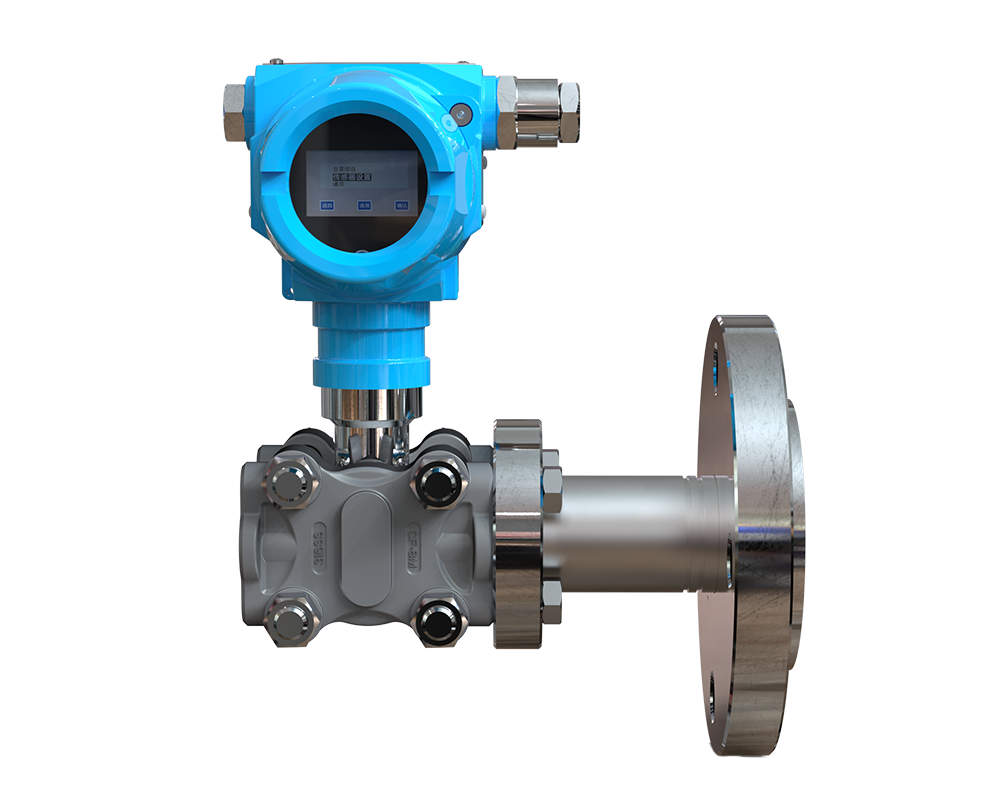

NFDP2001-LT Smart Differential Pressure Level Transmitter
The NFDP2001-LT smart differential pressure level transmitter is mainly used for liquid level measurement. It converts the measured pressure signal into a 4-20 mA DC output and supports remote configuration and monitoring.
Product Overview
▅ Product Features
1. Using monocrystalline silicon piezoresistive technology, the performance is stable and the accuracy can reach ±0.075% FS + the influence of the diaphragm system;
2. The high overload protection diaphragm realizes the large pressure overload protection function;
3. The use of high-performance EMC protection circuit modules effectively reduces the impact of electromagnetic disturbance on the output of the product;
4. The stability is strong up to ±0.2% SPAN/5 year
▅ Applicable scenarios
Oil and gas industry, food processing, pulp and paper, power energy, chemical industry, marine equipment.
Performance Specifications
| Measuring medium | Liquid | |
| Precision | Influence of ±0.075%FS+ diaphragm system | |
| Range | 40kPa~3MPa | |
| Annual stability | ±0.2%SPAN/5 Year | |
| Output signal | 4mA~20mA DC+HART Modbus-RTU/RS485 | |
| Display | LED display | |
| Casing material | Electrical connections | M20*1.5. NPT1/2, G1/2 |
| Protection level | IP67 | |
| Explosion-proof level | Explosion-proof ExdIICT6, intrinsically safe ExiaIICT4 | |
| Ambient temperature effect | In the range of -10℃~80℃: (0.375+0.125TD)%/10℃ of SPAN | |
| Voltage influence | When the supply voltage is 10.5V/16.Changes within 5V~55V DC, the changes in zero point and range should not exceed ±0.005%URL/V | |
| Installation position impact | The installation of the transmitter may produce a zero point error, which can be corrected by zero adjustment without range impact | |
| Vibration impact | Tested according to GB/T18271.3/IEC61298-3, <0.1% | |
| Weight | With DN50 flange: Approximately 12.6kg (excluding capillary) With DN80 flange: Approximately 15.5kg (excluding capillary tube) |
