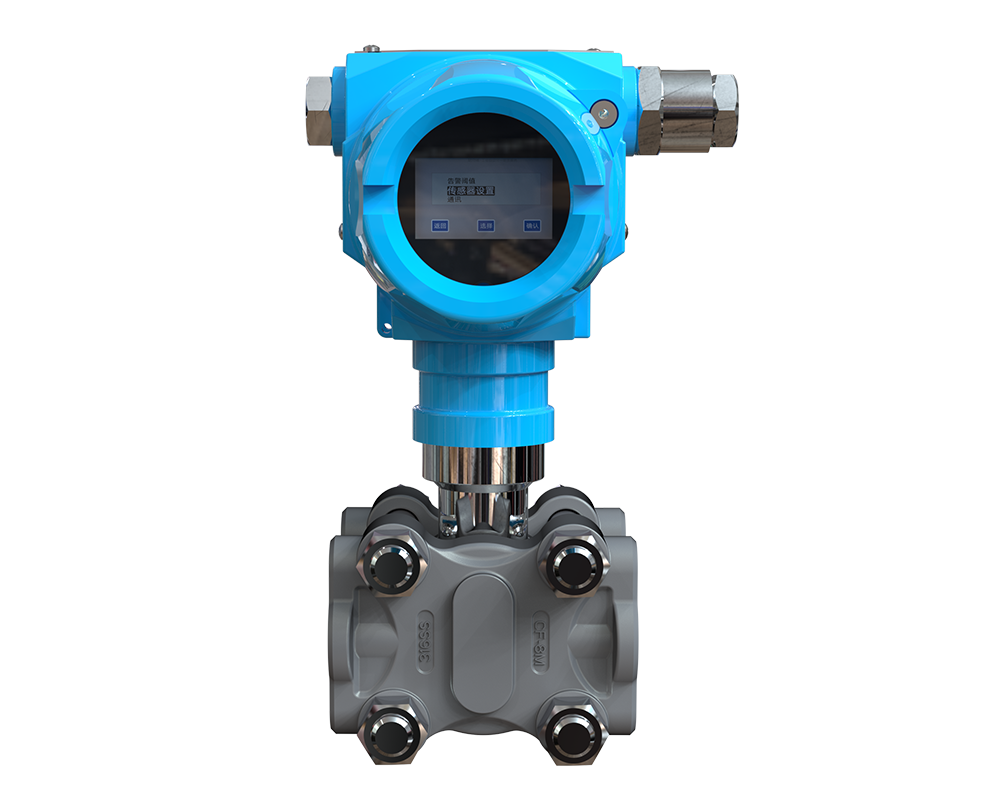

NFDP2001 Smart Differential Pressure Transmitter
The NFDP2001 smart differential pressure transmitter measures differential pressure, flow, level, density and pressure of liquids, gases or steam. It provides a 4-20 mA DC output with remote configuration and monitoring capability.
Product Overview
▅ Product Features
1. Using monocrystalline silicon piezoresistive technology, the performance is stable and the accuracy can reach ±0.075%FS;
2. The maximum range ratio is 100:1, and the measurement range can be adjusted flexibly;
3. The use of high-performance EMC protection circuit modules effectively reduces the impact of electromagnetic disturbance on the output of the product;
4. The stability is strong and can reach ±0.2%SPAN/5 year
▅ Applicable scenarios
Oil and gas industry, food processing, pulp and paper, electric power energy, chemical industry, marine equipment.
Performance Specifications
| Measuring medium | Gas, liquid and vapor | |
| accuracy | ±0.075%FS, ±0.1%FS, ±0.2%FS | |
| Range | 6kPa~10MPa | |
| Annual stability | ±0.2%SPAN/5 Year | |
| Output signal | 4mA~20mA DC+HART Modbus-RTU/RS485 | |
| Display | LED display | |
| Casing material | Electrical connections | M20*1.5. NPT1/2, G1/2 |
| Protection level | IP67 | |
| Explosion-proof level | Explosion-proof ExdIICT6, intrinsically safe ExiaIICT4 | |
| Ambient temperature effect | Measuring range 6KPa:±（0.1+0.05TD）%/10℃ of Span Measuring range 40kPa, 250kPa, 1MPa, 3MPa, 10MPa: ±(0.075+0.0375TD)%10℃ of Span | |
| Voltage influence | When the supply voltage changes within 10.5V/16.5V~55V DC, the changes in zero point and range should not exceed ±0.005%URL/V | |
| Installation location affects | Installation at any location, the maximum does not exceed 400Pa can be corrected through the clear function | |
| Vibration impact | Press GB/T18271.3/IEC61298-3 test, <0.1% | |
| Weight | Net weight: approx. 4kg (without mounting bracket, process connection accessories) |
