Attitude Digital Measurement and Control Demonstration System
A digital twin demonstration and monitoring system for large modules, transfer equipment and process objects. It uses real-time data acquisition to drive a virtual model that remains synchronized with the physical equipment, enabling intuitive process visualization, abnormal-condition monitoring and fault warning.
Product Overview
▅ Core Technical Advantages

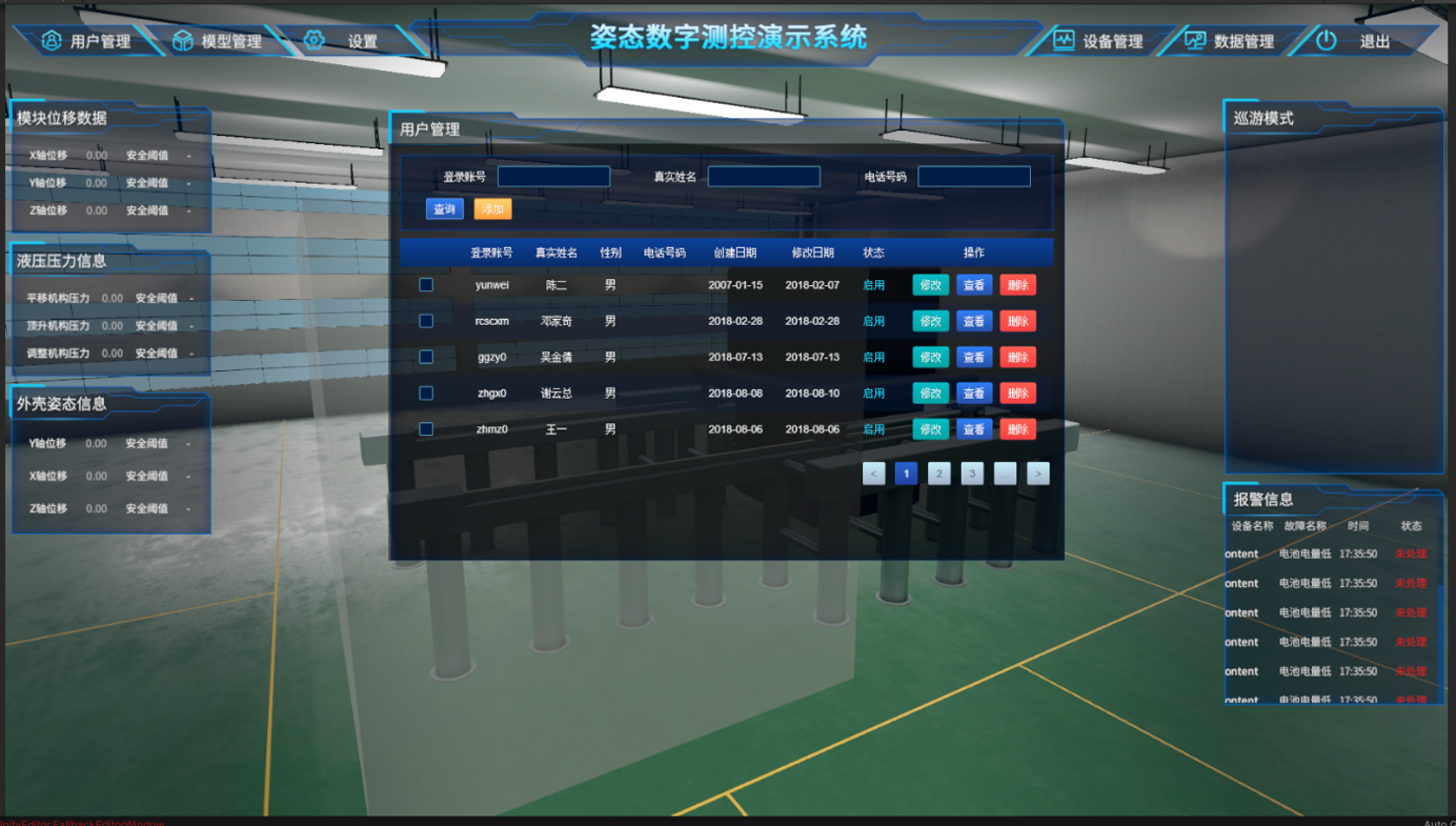

Visual interaction: Supports 3D dynamic display and remote operation, synchronizing the physical device with its virtual model for intuitive process monitoring.
Detection and alarm: The system identifies potential risks or abnormal operating states according to configured alarm rules and triggers the corresponding warning level in time.
Offline simulation: Historical operating data can drive offline model playback and simulation, supporting process review and optimization.
Model disassembly: Multi-angle model observation and disassembly views help users understand internal structure, device layout and functional relationships.
Distance and projection measurement: The system can measure and display the distance between arbitrary points on a 3D object, including straight-line distance in world coordinates and projected distance on specified planes.
▅ Application Value
The system connects real-time acquisition, virtual-model mapping, visual demonstration and intelligent alarm functions. It helps operators monitor the full process of large modules and transfer equipment, improves situational awareness, reduces abnormal-condition response time and supports safer, more traceable operation.
