Helium Leak Testing Device
A vacuum-box helium mass spectrometer leak testing device for micro-leak detection, supporting simultaneous evacuation, helium charging, helium recovery and high-precision airtightness assessment for demanding industrial equipment.
Product Overview
▅ Core Technical Advantages
Helium recovery and recycling: Helium inside the tested workpiece can be recovered and reused during inspection, substantially reducing helium consumption and operating cost while meeting industrial energy-saving requirements.
High-precision multi-range leak detection: The system uses a high-precision helium mass spectrometer leak detector. The detector leak-rate range covers 2.8 x 10^-6 Pa·m3/s to 2.8 x 10^-13 Pa·m3/s, while the vacuum chamber leak rate is better than 1 x 10^-10 Pa·m3/s. A calibrated standard leak with a report from the National Institute of Metrology, China supports reliable measurement traceability.
Efficient intelligent workflow: An integrated electrical control system and operator console coordinate evacuation, helium charging, leak detection, recovery and data handling. With a workpiece evacuation port not smaller than Phi 16 mm, the cycle time is no more than 20 minutes per piece.

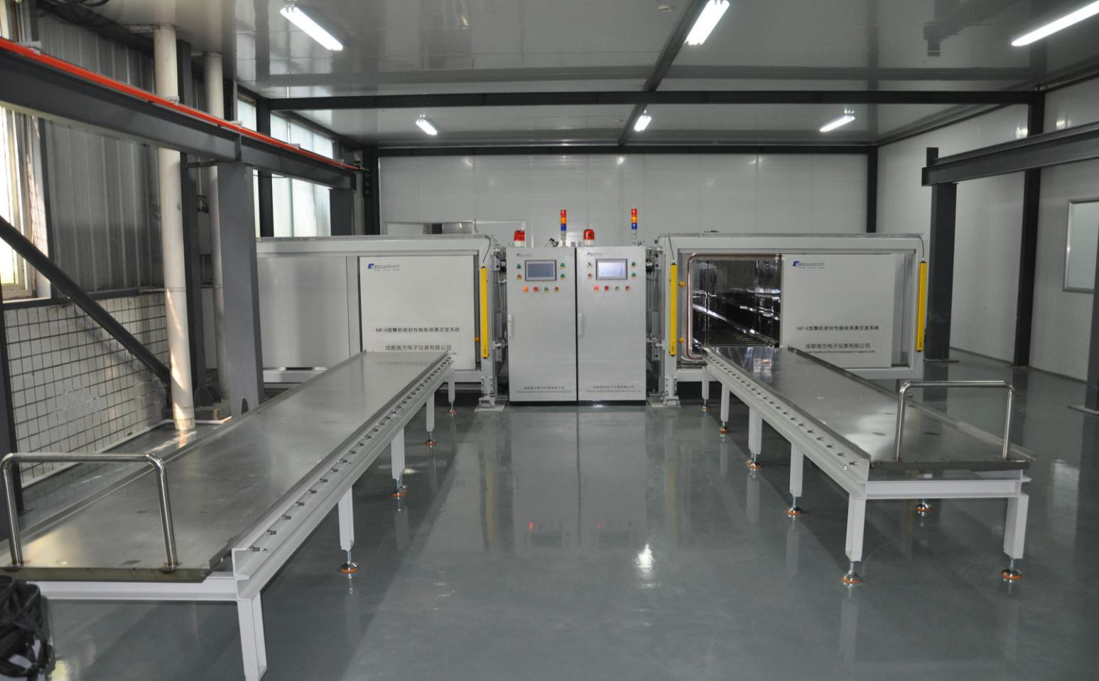

Modular adaptation for different workpieces: Two vacuum-box specifications are available: Box A 4000 mm x 800 mm x 800 mm and Box B 5000 mm x 800 mm x 800 mm. The device supports workpieces up to Phi 550 x 1200 mm and adjustable helium charging pressure up to 0.5 MPa.
▅ Key Technical Parameters
Vacuum box size: Box A 4000 mm x 800 mm x 800 mm; Box B 5000 mm x 800 mm x 800 mm
Maximum workpiece size: Phi 550 x 1200 mm

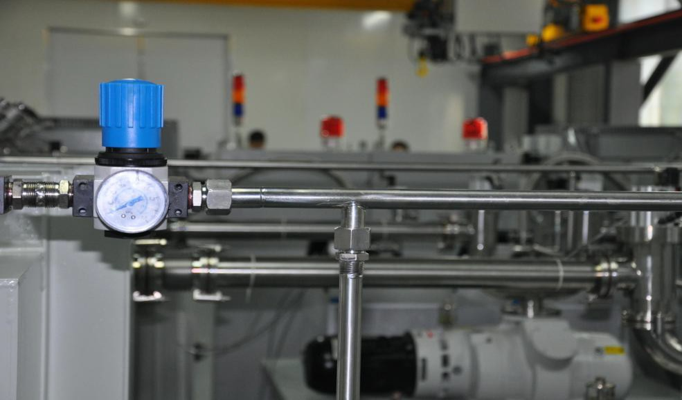

Maximum helium charging pressure: 0.5 MPa (adjustable)
Cycle time: no more than 20 minutes per piece when the workpiece evacuation port is not smaller than Phi 16 mm
Vacuum chamber leak rate: better than 1 x 10^-10 Pa·m3/s
Standard leak rate: 10^-8 Pa·m3/s
Leak detector range: 2.8 x 10^-6 Pa·m3/s to 2.8 x 10^-13 Pa·m3/s
Vacuum for vacuum-box leak testing: no more than 10 Pa (adjustable)

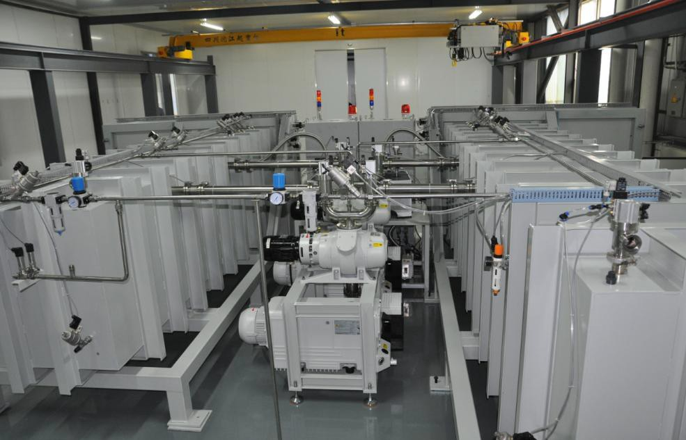

Equipment composition: helium mass spectrometer leak detector, vacuum pump set, vacuum chamber, workpiece trolley, electrical control cabinet and operator console
▅ Application Scenarios
Nuclear industry: leak testing of nuclear valves, nuclear vessels and penetrations.
Aerospace: leak testing of aircraft and rocket-engine equipment.
New energy: leak testing of power lithium-battery covers and cells.
Petrochemical and power: leak testing of tanks, pipelines, high-voltage cables and transformers.
Automotive, electronics and semiconductor: leak testing of fuel systems, air-conditioning systems and precision electronic components.
Refrigeration and water treatment: sealing-performance testing of refrigerators, air conditioners and water-treatment equipment.
▅ Application Value
The helium leak testing device helps identify micro-leaks in safety-critical industrial equipment. High-precision measurement, helium recovery and traceable calibration support reliable quality control in nuclear, aerospace, new-energy, petrochemical and other demanding industries.
