High-Temperature High-Pressure Water Test Module

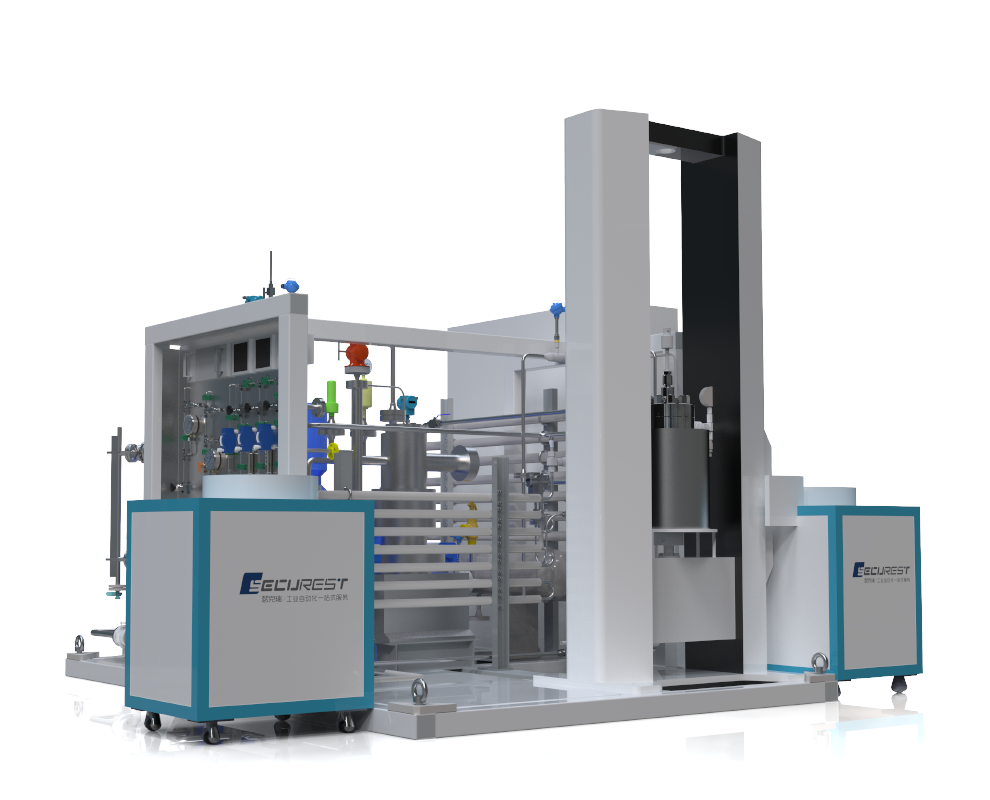

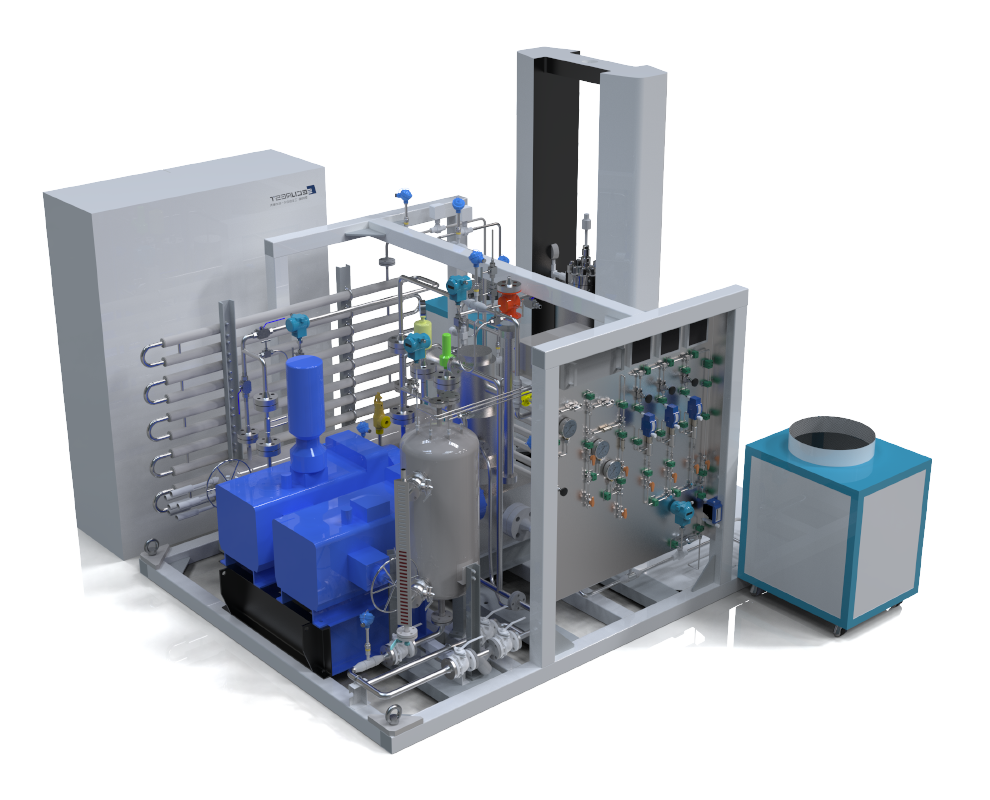

An integrated test module for evaluating material performance under extreme conditions. It combines an autoclave, temperature/pressure/flow control, tensile loading, specimen fixtures and data acquisition to simulate high-temperature and high-pressure water environments, including seawater, acidic and alkaline media, for simultaneous corrosion and mechanical-performance testing.
Product Overview
▅ Core Technical Advantages
Three-dimensional high-precision control: Temperature in the loop and autoclave is controlled with fluctuation within ±1°C; pressure is maintained at 20 MPa with fluctuation within ±0.1 MPa; flow is adjustable up to 1.5 m³/h with stability of ±2%, supporting repeatable dynamic corrosion testing.
Multi-function integrated testing: The module supports static and dynamic corrosion tests in high-temperature and high-pressure seawater, acidic and alkaline liquids. It also supports stress corrosion cracking tests under combined tensile/compressive stress and corrosive media.
Reliable real-time monitoring and traceability: The data acquisition system records temperature, pressure, flow, load and displacement synchronously, with sampling frequency up to 300 kHz. Online chemical measurement tracks medium composition and supports complete analysis reports.
Comprehensive safety protection: A dynamically sealed autoclave, over-temperature/over-pressure protection, and coordinated chiller and heat-exchange systems help ensure safe operation under high-temperature and high-pressure conditions.
▅ Key Technical Parameters
Design temperature: 200°C
Design pressure: 20 MPa
Design flow: 1.5 m³/h
Wetted materials: 316L stainless steel, HC276 alloy, S22053 stainless steel and TA2 alloy
Maximum tensile load: not less than 50 kN
Displacement accuracy: error less than indicated value ±0.05%
Load sensor accuracy from 50 N to 50 kN: error less than indicated value ±0.5%
Dynamic stroke: not less than 1000 mm
Sampling frequency: not less than 300 kHz
Test speed range: not less than 0.00006-600 mm/min
▅ Application Scenarios
Material science: performance evaluation of new materials in high-temperature and high-pressure liquids, including seawater.
Chemical industry: simulation of corrosive process environments for equipment-material assessment.
Power industry: corrosion-resistance testing for boiler, steam-generator and related equipment materials.
Aerospace: study of corrosion behavior of engine and aircraft structural materials under extreme environments.
▅ Application Value
With 20 MPa pressure, 200°C temperature and up to 300 kHz data acquisition, the module provides a scientific, repeatable test platform for material selection, R&D optimization and operating-condition adaptation across high-end manufacturing industries.
